Description
Maplin

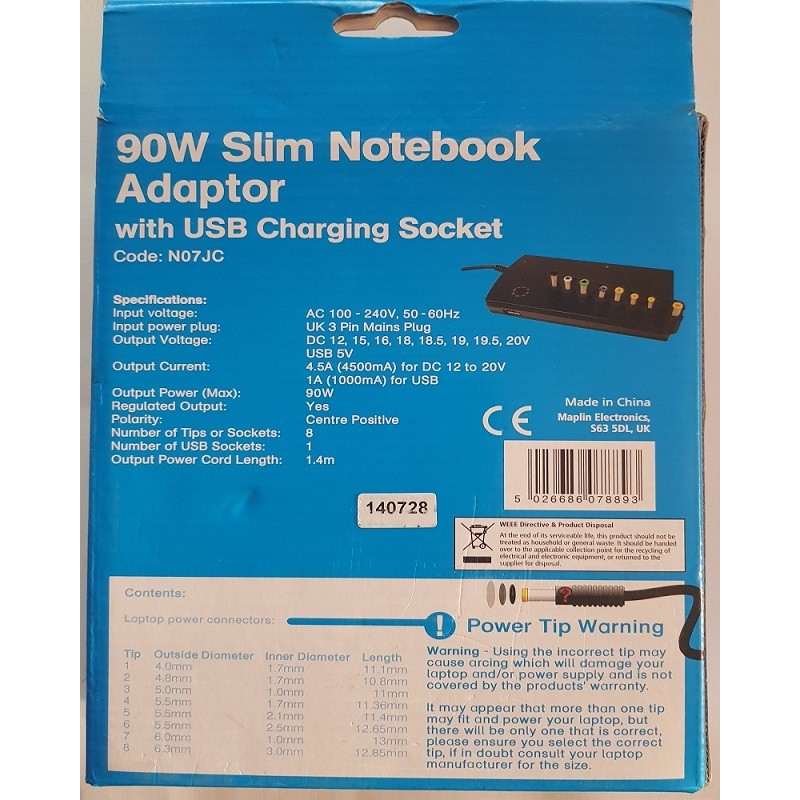

Maplin 90W Slim Notebook
USB Charging Socket
(USED)
In the box
8 x tips
1 x carry bag
1 x Power adaptor unit
1 x UK power lead
Manual
Universal 90-watt laptop power adaptor with integrated USB charging function
Voltages selectable DC 12, 15, 16, 18, 18.5 19, 19.5 up to 20v
4.5A current; dependent on voltage setting
Supplied complete with mains lead and 8 popular power tips
Stabilised output, low ripple and low interference
Universal input voltage for use all over the world with suitable travel adaptor
Power Tip Warning
Warning: Using the incorrect tip may cause arcing which will damage your laptop and or supply and is not covered by the products warranty.
It may appear that more than one tip may fit and power your laptop,
but there will be only one that is correct for your laptop, so please ensure you select the correct tip,
if in doubt consult your laptop manufacture for the right size.
| Voltage: | Multi-volt |
| Current: | 4500mA |
| Power Tips: | 8 |
| Polarity: | Centre positive |
| Specifications: | |
| Input voltage: | AC 100 ~ 240v , 50- 60Hz |
| Input power plug: | UK 3 Pin main plug |
| Output Voltage: | DC 12, 15, 16, 18, 18.5. 19, 19.5 to 20v USB 5v |
| Output Current: | 4.5A (4500mA) for DC 12 to 20v 1A (1000mA) for USB |
| Output Power (Max): | 90w |
| Regulated Output: | Yes |
| Polarity: | Centre positive |
| Number of tips or sockets: | 8 |
| Number of USB sockets: | 1 |
| Output power cord length: | 1.4m |
| Tip | Outside diameter | Inner diameter | Length |
| 1 | 4.0mm | 1.7mm | 11.1mm |
| 2 | 4.8mm | 1.7mm | 10.8mm |
| 3 | 5.0mm | 1.0mm | 11mm |
| 4 | 5.5mm | 1.7mm | 11.36mm |
| 5 | 5.5mm | 2.1mm | 11.4mm |
| 6 | 5.5mm | 2.5mm | 12.65mm |
| 7 | 6.0mm | 1.0mm | 13mm |
| 8 | 6.3mm | 3.0mm | 12.85mm |
Ensure you set the correct voltage for your equipment before use,
the correct voltage will be noted in the instructions for your equipment and probably on the input power socket and on your original power supply if you still have it.
Check the power requirement for the laptop before use! The same voltage,
but the amperage (current rating) can be same or higher on the power supply
Due to the wide variety in brands and models and the frequent release of new laptop models,
it is very likely that the power supply will work with your laptop, but please check if the plug type and power rating fits the needs of your laptop.
The power tips are moulded in such a way that they can only be inserted one way round providing a centre-positive – before use,
please check that this matches the polarity required by your laptop, and if in any doubt, seek professional guidance.
Barcode: 5026686078893
Please note
The above item(s) have been checked, to see if they carry the correct power output to match the manufactures shown output.
All items(s) have been tested.
USED VERSION
